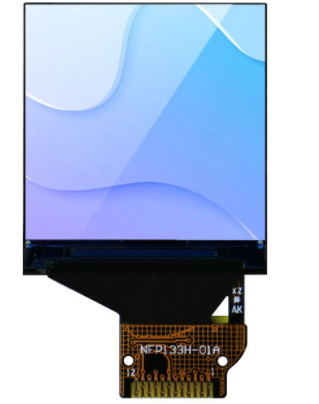

1.33 Inch IPS TFT LCD Display with 240x240 Resolution and 12 Pins for Wearable Devices

  • 1
  • 2

Product Type : TFT LCD Screen

Lcd Type : IPS

Pins Number : 12Pins

Operating Temperature : -20~+70℃

Size : 1.33 inch

Display Mode : Normal Black

AA Size : 23.40*23.40mm

Backlight Type : LED

Place of Origin : China

Brand Name : BBI

Certification : ISO9001 RoHS

MOQ : 1000

Price : 0.7-7USD

Packaging Details : CARTON

Delivery Time : 3-4WEEKS

Payment Terms : T/T

Supply Ability : 100000/MONTH

Contact Now

1.33 Inch IPS TFT LCD Display 240x240 Driver Ic ST7789V 350cd/m²
This TFT LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 1.33 inch then our LCD is just what you need. Improve your product design by adding our 240*240 resolution product. QC department measured the luminance is 350 nits under normal operating conditions.
Specification Value
Size (inch) 1.33
Resolution 240*240
Active Area (mm) 23.40*23.40
Pixel pitch (um) 97.5*97.5
Outline Dimension (mm) 26.16*29.22*1.5
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness (cd/m²) 350
Contrast Ratio 600:1
Interface 4 Wire SPI
Back-light LED Side-light type
Driver Ic ST7789V
Operation Temperature (°C) -20~70
Storage Temperature (°C) -30~80
Response time (ms) 35
Pin Number 12
1.33 Inch IPS TFT LCD Display with 240x240 Resolution and 12 Pins for Wearable Devices 1.33 Inch IPS TFT LCD Display with 240x240 Resolution and 12 Pins for Wearable Devices
Application Scenarios
This display is ideal for applications requiring small size, high brightness, and low power consumption. Its core applications include:
Wearable Device Field
  • Smart watches/bracelets: Displays time, heart rate, exercise data, and notifications with 350cd/m² brightness for outdoor visibility
  • Smart glasses/sports glasses: Secondary screen for navigation and calls with comfortable wearing design
  • Health monitoring devices: Displays real-time data with IPS wide viewing angle for easy reading
Portable Intelligent Device Field
  • Smart home controllers: Displays status and operation feedback for switches and sensors
  • Portable instruments: Clearly shows measurement data and waveforms at 240*240 resolution
  • Small game consoles/toys: Enhances gaming experience with excellent color performance
Industrial and IoT Field
  • IoT sensor nodes: Local display for agricultural/industrial monitoring data
  • Small industrial controllers: Shows operation parameters with ST7789V driver stability
  • Smart access control: Displays user information and attendance status
